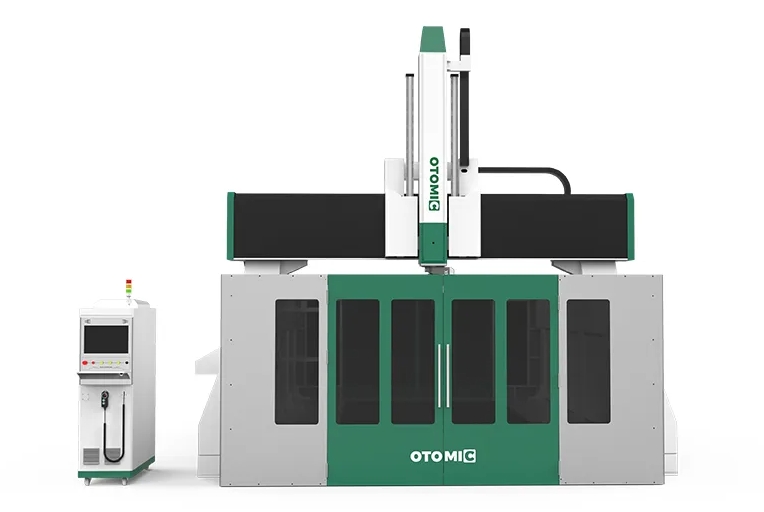

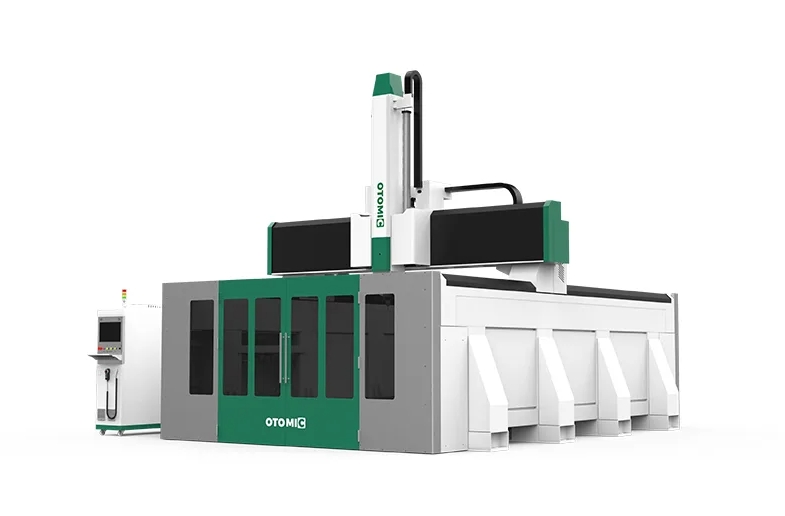

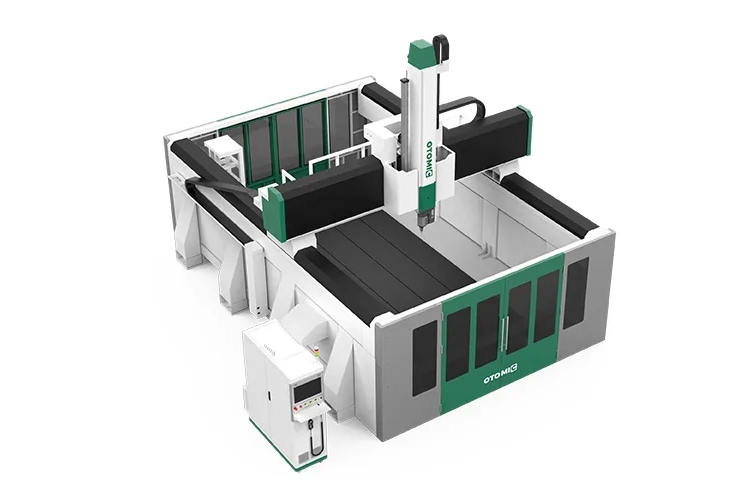

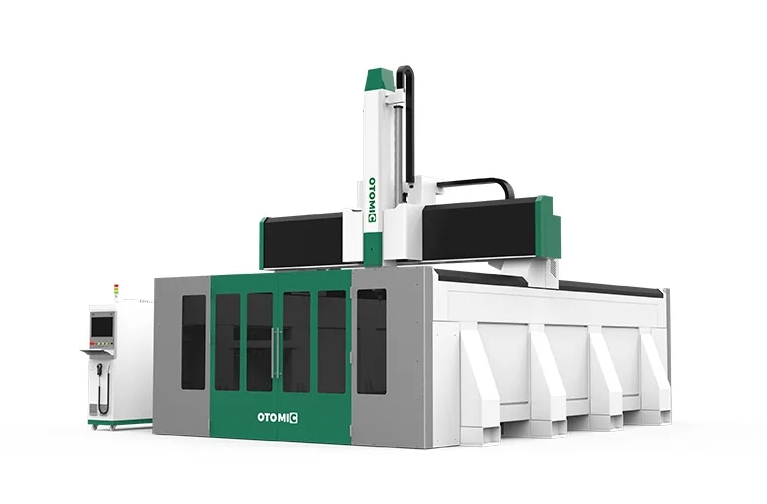

Heavy Duty ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving
Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.
Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month
Description
This is a new designed 5-axis CNC machining center with a heavy duty. It is equipped with a large working table of 3000*5000mm, which can easily process big and thick non-metal or metal plates. Moreover, with beautiful apperance and practical functions, it is sold hot at home and abroad.
FEATURES
With heavy duty body and high Z axis, it can better ensure the whole cutting and engraving process stable and accurate.
Use 5+4 Italy vertical drills, it can drill holes fast at different sides of the board.
Large-size vacuum& T-slot worktable, it is convenient to fix and process the metarial, which will greatly increase efficiency.
![ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving]( "ATC 5 Axis CNC Machine Center for 3D Mold/Model Carving")
Parameter
| Model | ELECNC-3050 |
| X,Y axis travel | 3000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm,etc |
| Z axis travel | 1100mm |
| Spindle type | 10KW Germany DMASS spindle |
| Inverter type | 15kw |
| Drilling bank | Taiwan or Italy 5+4 verticaldrills |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | HSK tool holder |
| Control system | Syntec 610MA-E5 |
| Driving system | 1800W Japan YASKAWA servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Machinestructure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan#35 linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany helical rack and pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Customized professional 5 axis software |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
