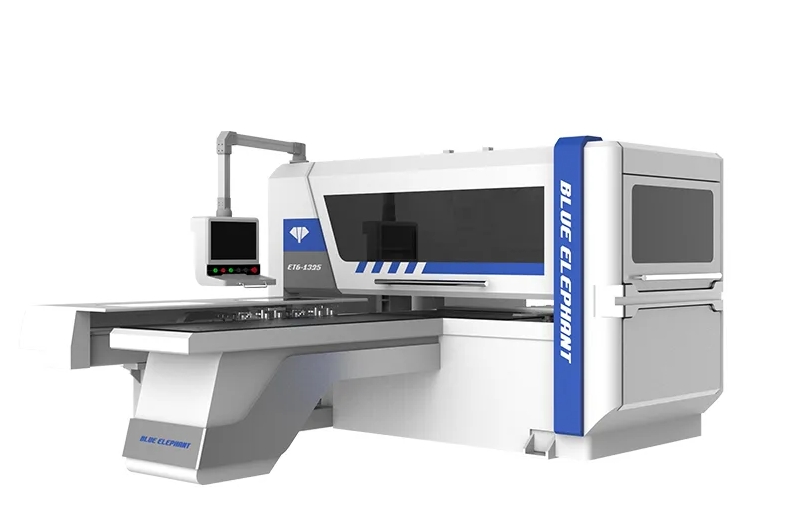

Six Sides Wood CNC Drilling Machine for Cabinet Hole Making

Function & Size: Made to your project's requirements
Payment: T/T, Visa, Master Card, American Express, etc.

Service: Operation, Installation, Maintenance Training
Supply ability: 200 Sets per month

Contact Now E-Mail Telephone WhatsApp

Product Details

Video

Description

Through wireless code scanning with automatic sorting function, automatic positioning, and automatic loading processing, it can realize six-side position processing and front and back groove processing at a time.

FEATURES

Automatically optimize the direction of the board to achieve front and back discharge.

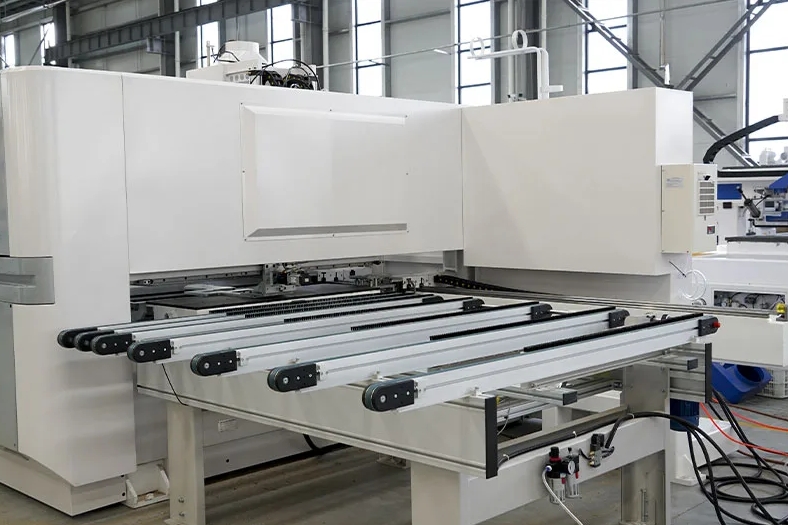

The use of high-end air floating table, so that the processing accuracy is more accurate.
It can make the punching smoother and maximize the yield rate of the plate.

Parameter

Model	ET6-1325
Working size	1300x2500mm

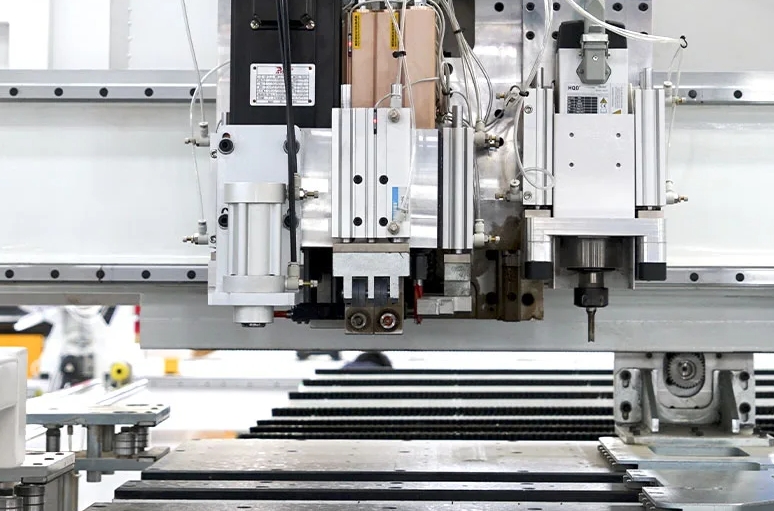

Spindle type	3.5KW Air cooling spindle*2
Number of tools	12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling

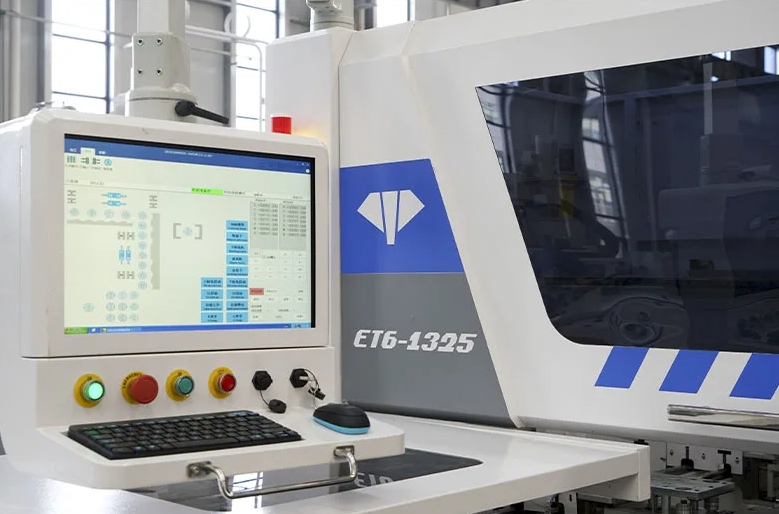

Control system	Blue Elephant Custom System
Driver system	Absolute servo motor
Transmission	Taiwan helical rack
X axis Travel speed	120m/min
Y axis Travel speed	80m/min
Re-positioning accuracy	±0.03mm
Software	Blue Elephant Custom System
Working voltage	220V /380V/ 50-60HZ
Machine overall size	583227272367mm
